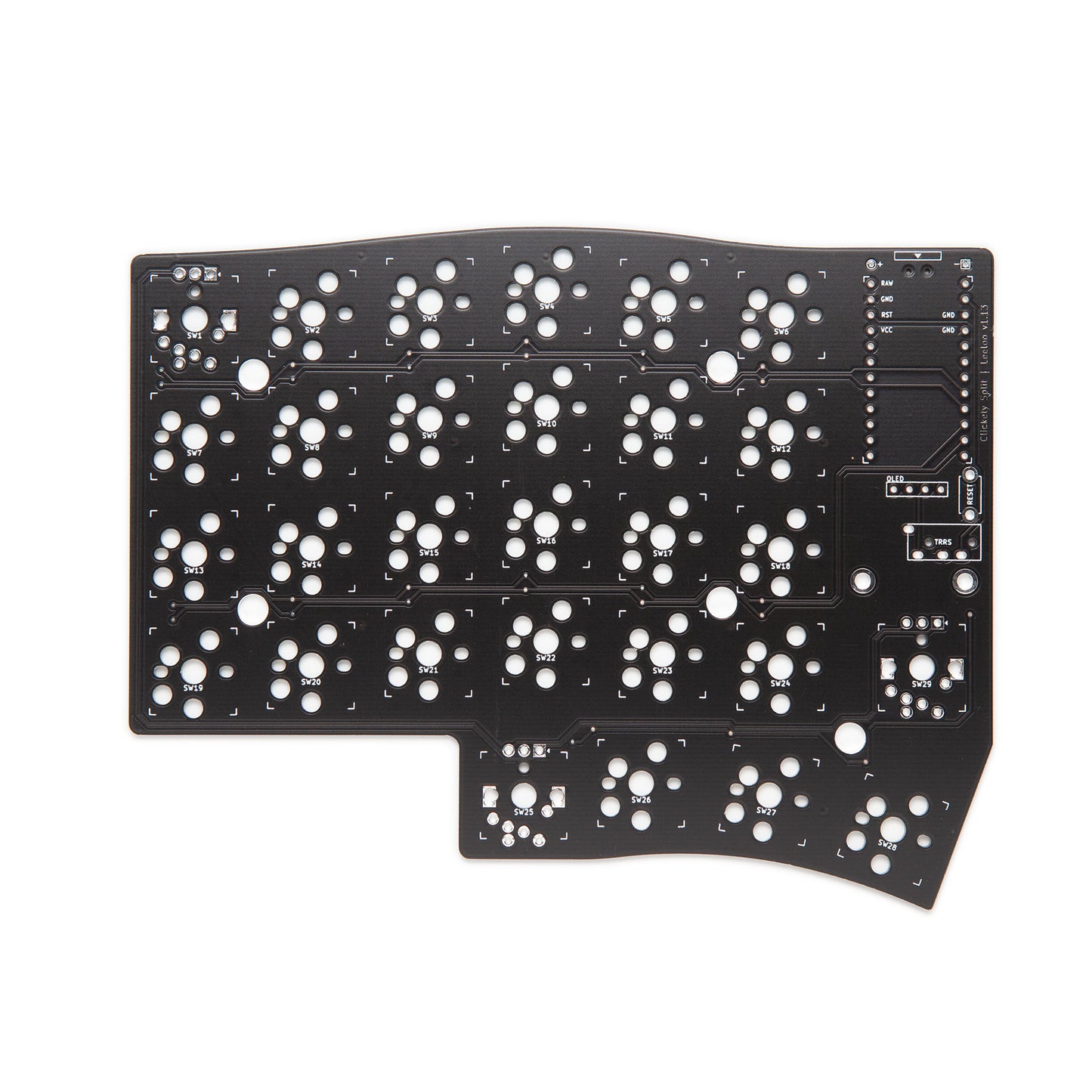

Leeloo v1.13 | Choc and Box Compatible

Leeloo Configurations:

Shields and Plates Kit:

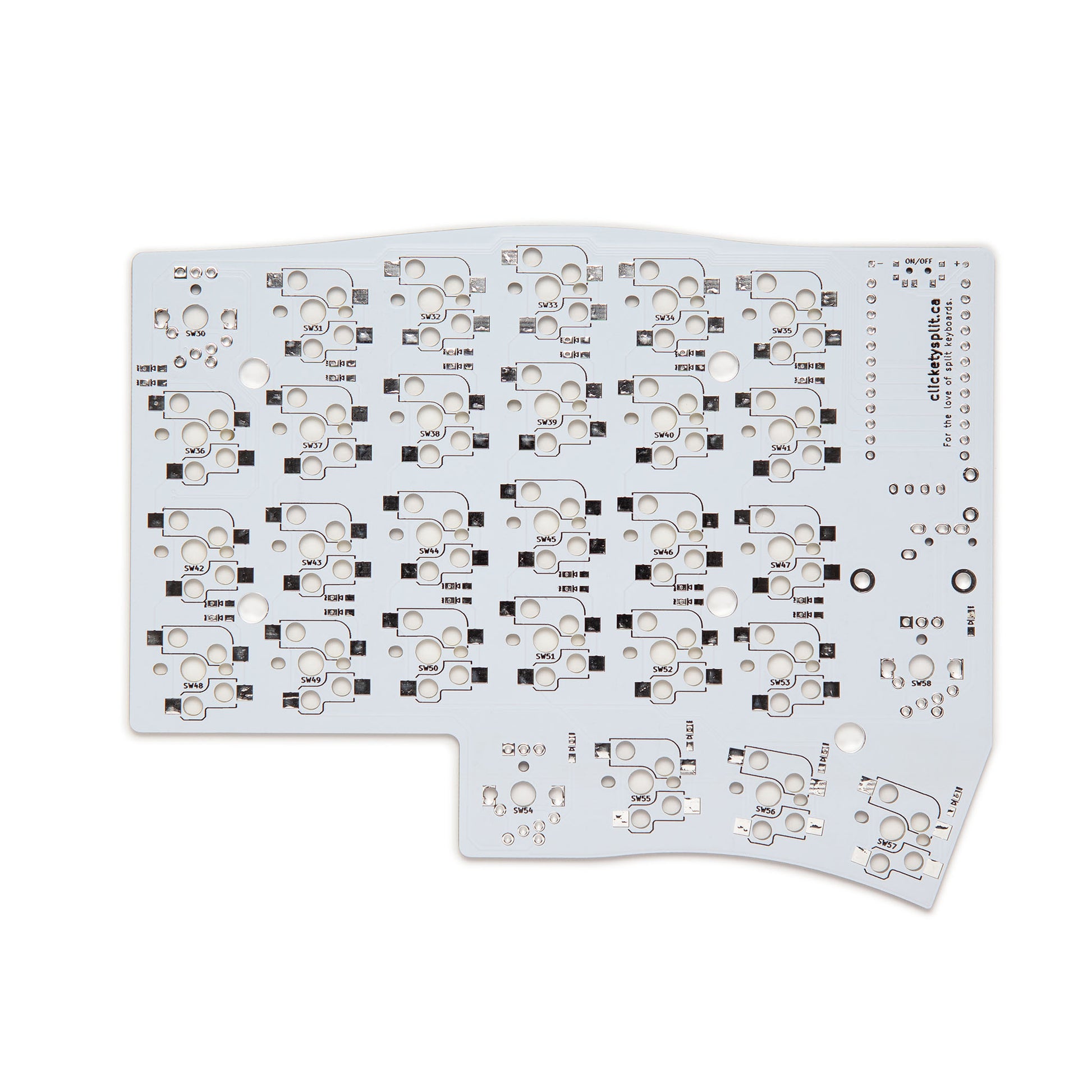

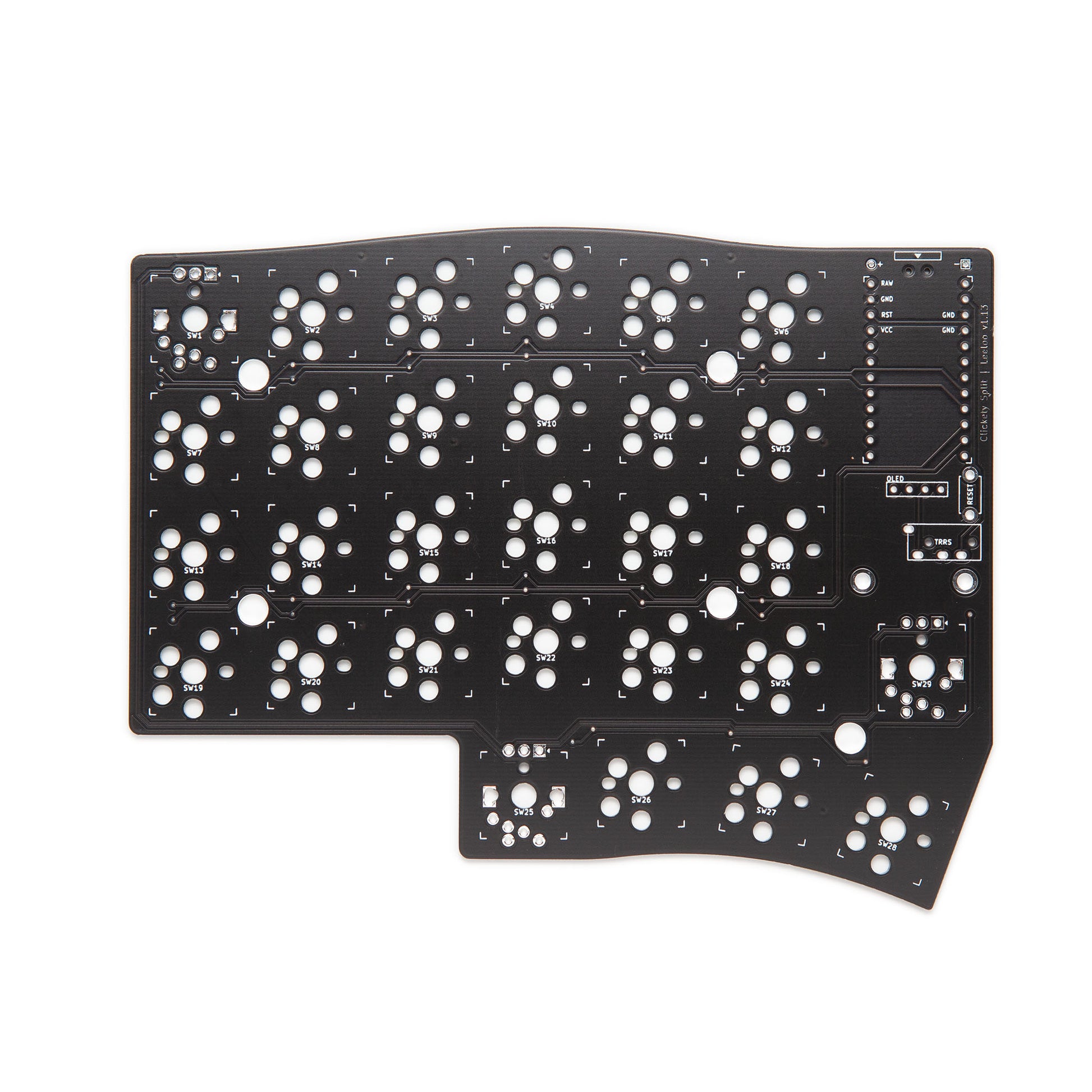

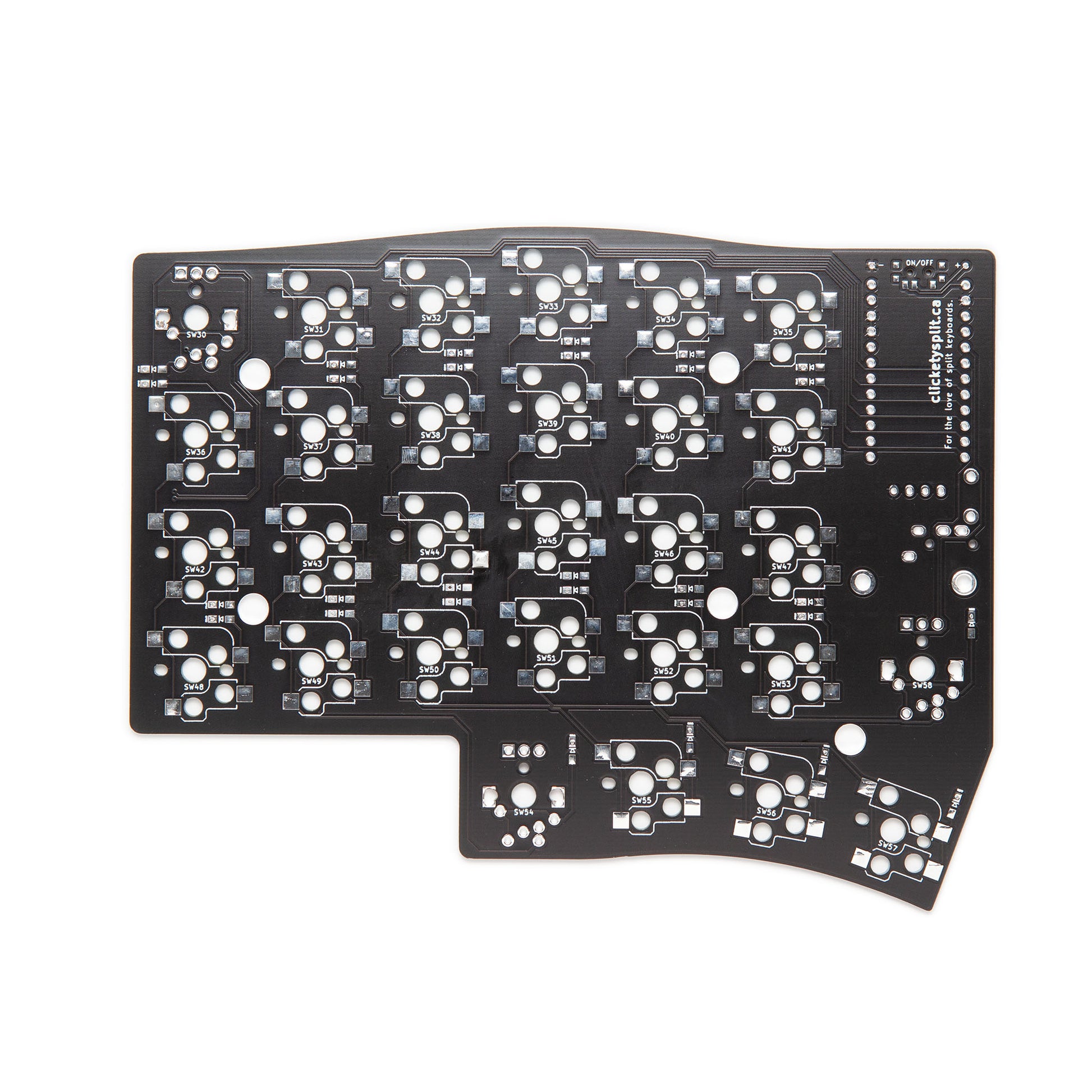

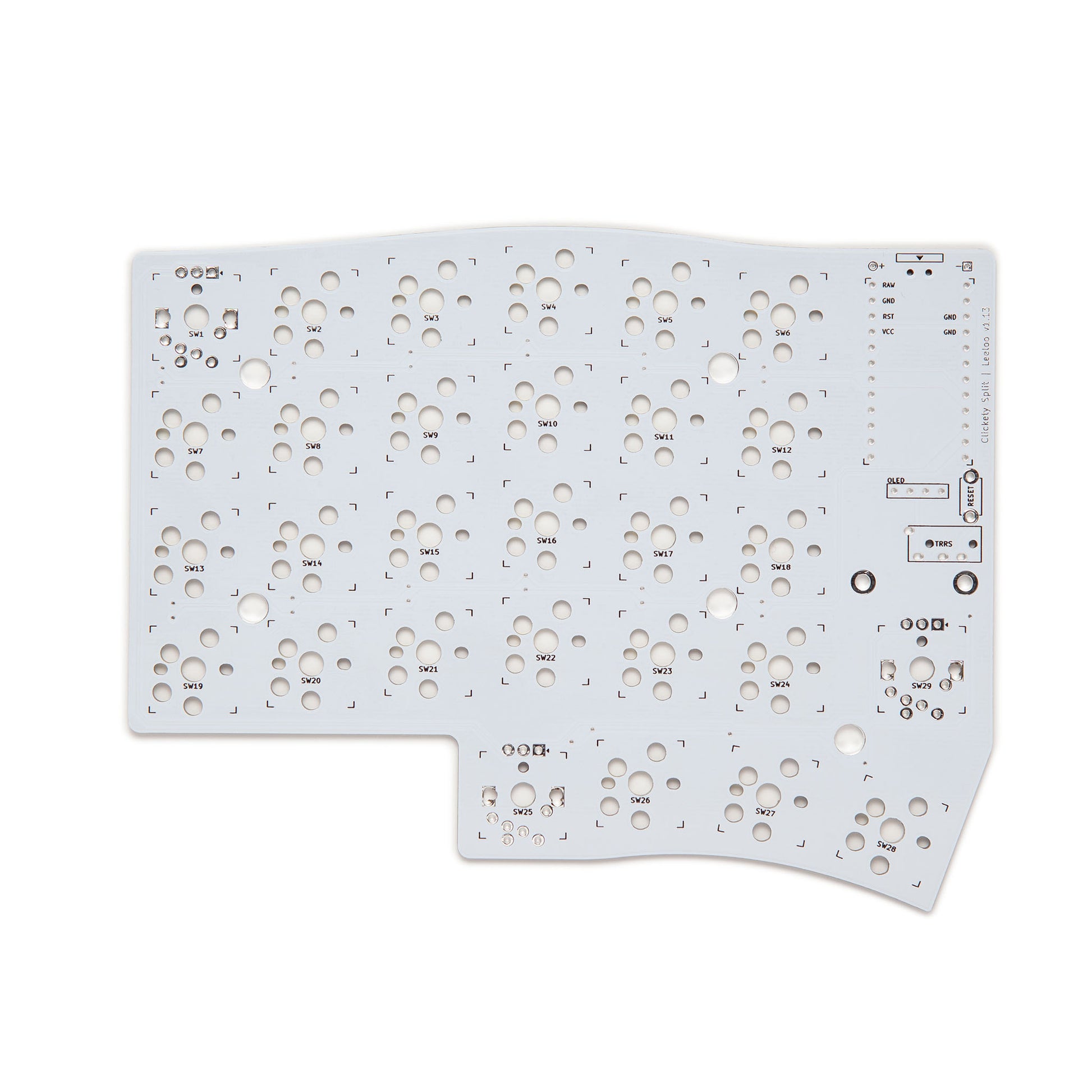

• 2x PCB Shields

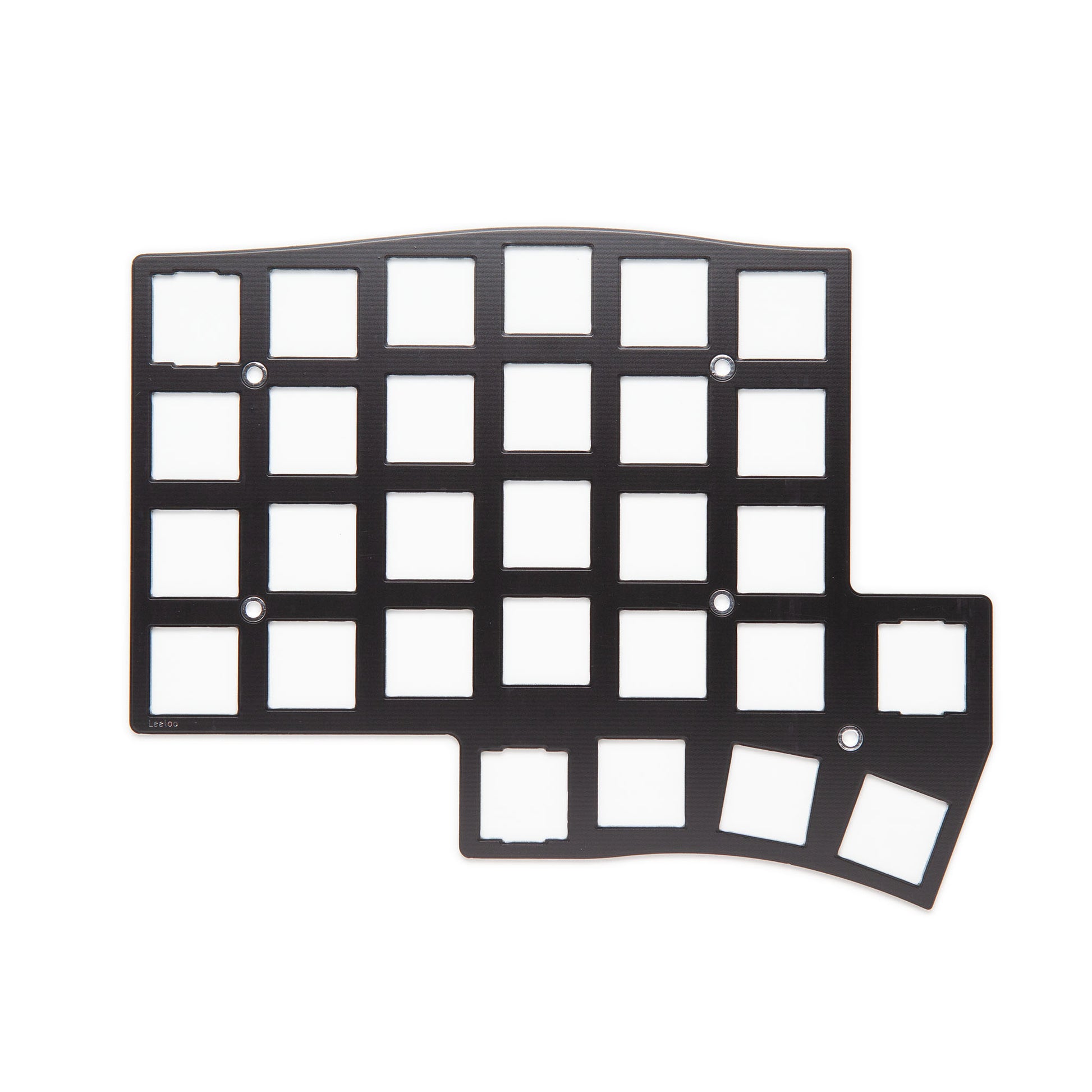

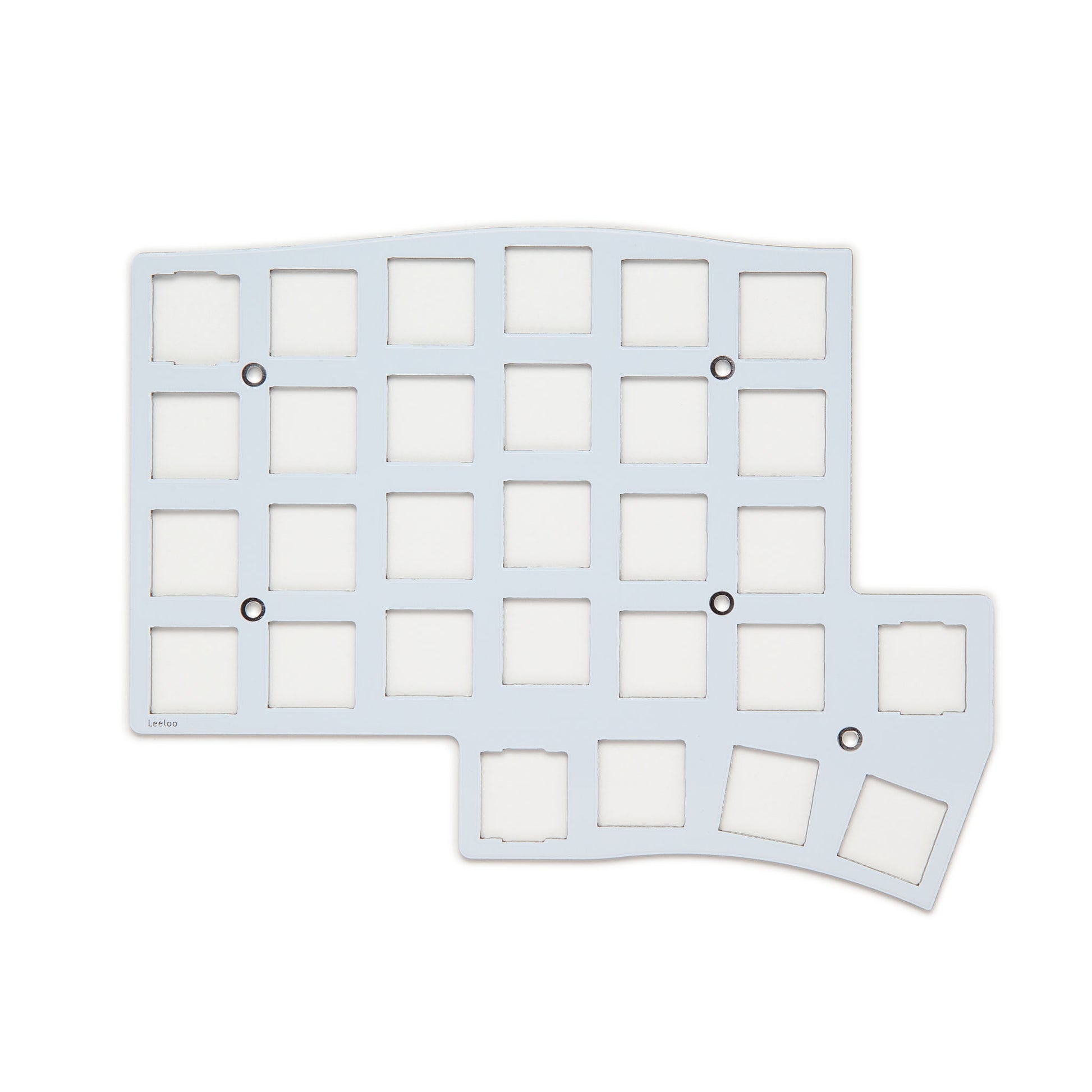

• 2x Top Plates

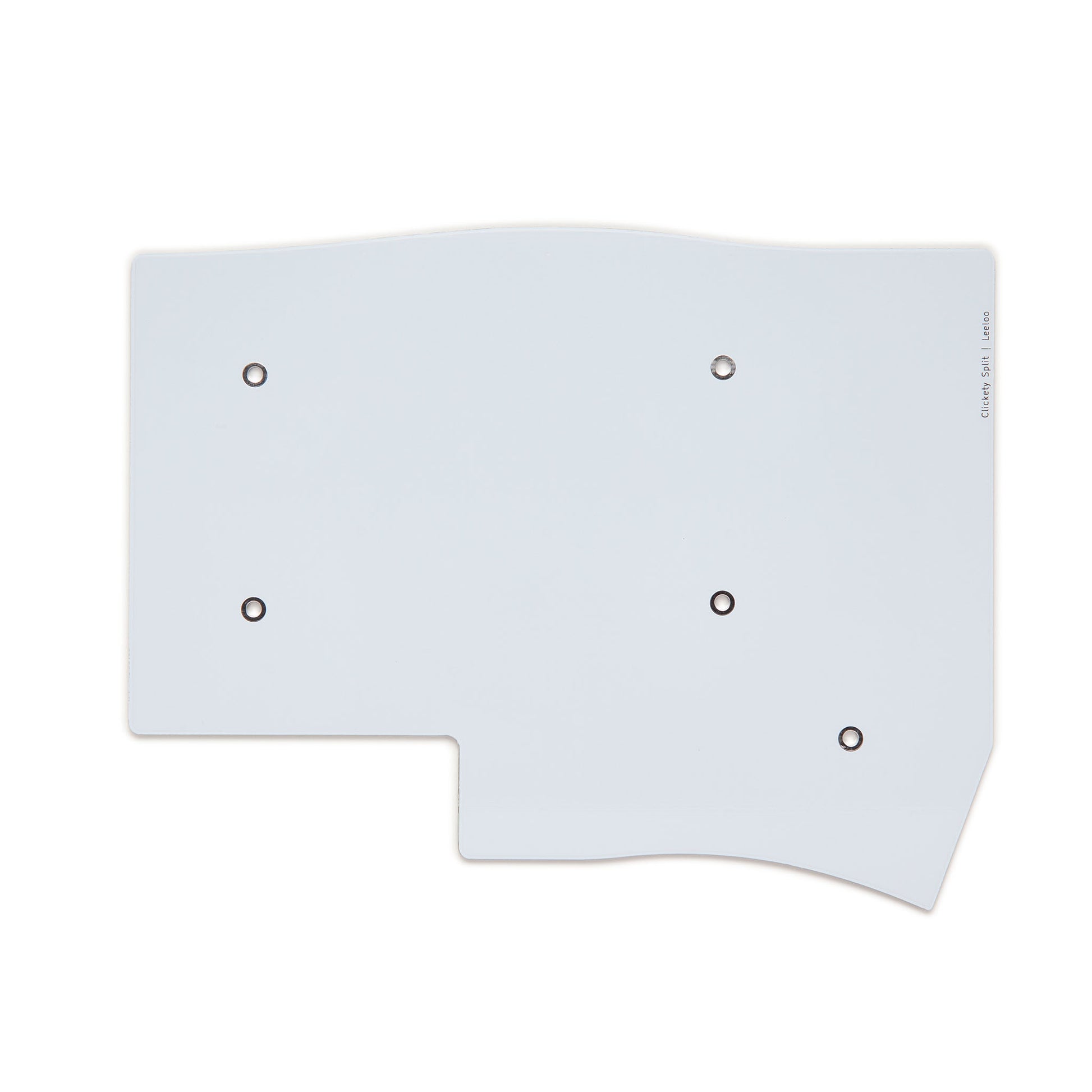

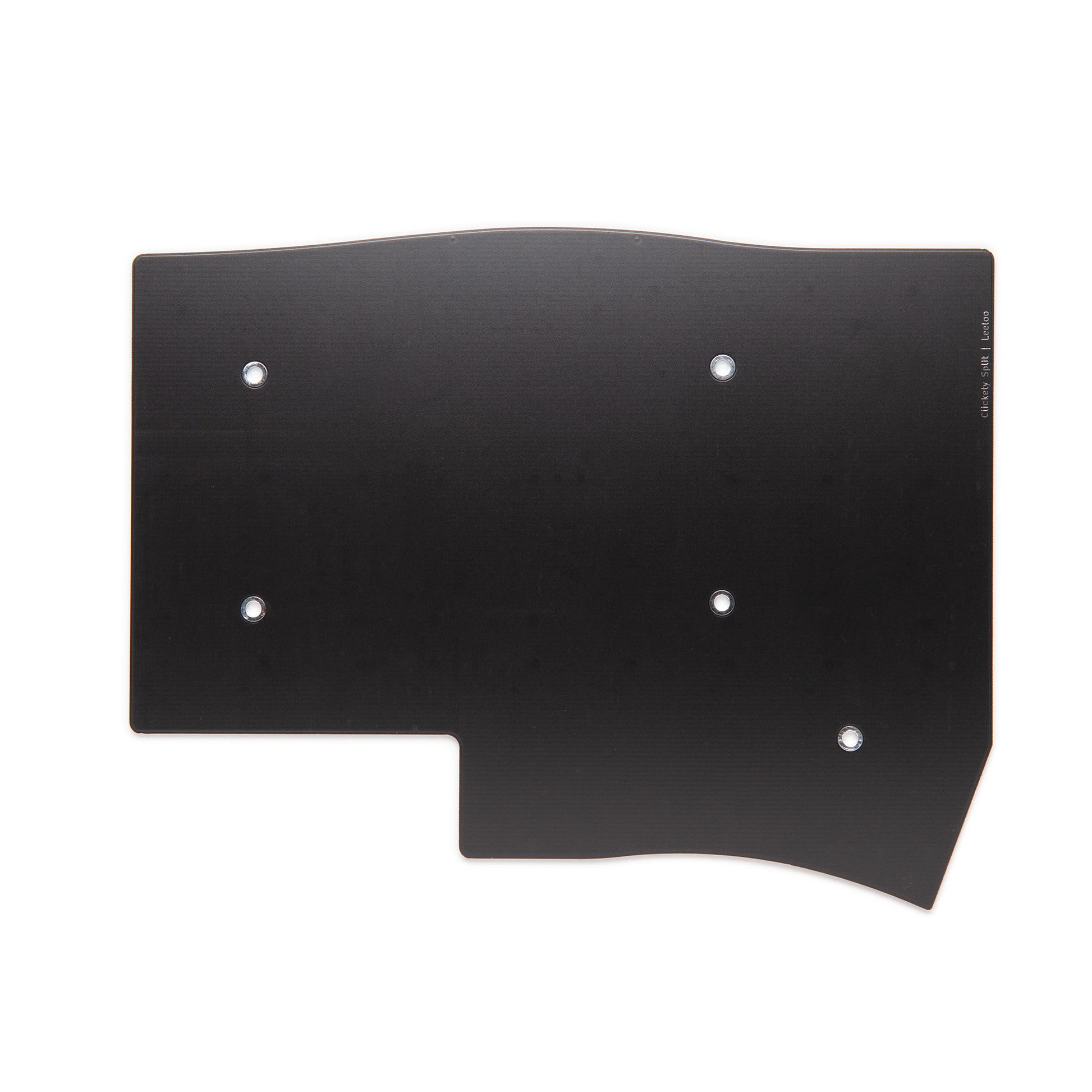

• 2x Bottom Plates
• Complete set of M2 Standoffs and T5 Torx Screws for Plates.

Note:

• Does not include the Acrylic Display Covers

Base Components Kit:

• Shields and Plates Kit
• 1 pair of TRRS 3.5mm Jacks
• 1 pair of Tactile Switches
• 60x Diodes | 1N4148 SOD-123F
• 60x Kailh Hot Swap Sockets for Choc Low Profile Switches or Box Switches

nice!nano v2 Kit:

• Base Components Kit:
• 2x nice!nano v2
• 2x Mill-Max Straight Pins
• 2x Mill-Max Low Profile SIP Sockets

Pro Micro Kit:

• Base Components Kit:
• 2x Pro Micro
• 2x Mill-Max Straight Pins
• 2x Mill-Max Low Profile SIP Sockets

Optional Items:

• 2x OLED Display 128x32
• 2x LiPo Battery | 301230 3.7V 110mAH (for nice!nano v2 Kit only)
• 2x Alps Micro Switch
• 1x or 2x Alps Rotary Encoder 20mm
• 1x or 2x Alps Rotary Encoder 15mm
• 1x or 2x 3D Printed Dials

Required Items:

• 58x Low Profile Choc or Box Switches
• Keycap Set
• TRRS Cable
• USB-C Cable for nice!nano v2
• Micro USB Cable for Pro Micro

Build Guide:

If you'd like to learn more about the build process for Leeloo, you may visit Clickety Split's GitHub: https://github.com/ClicketySplit/build-guides.
