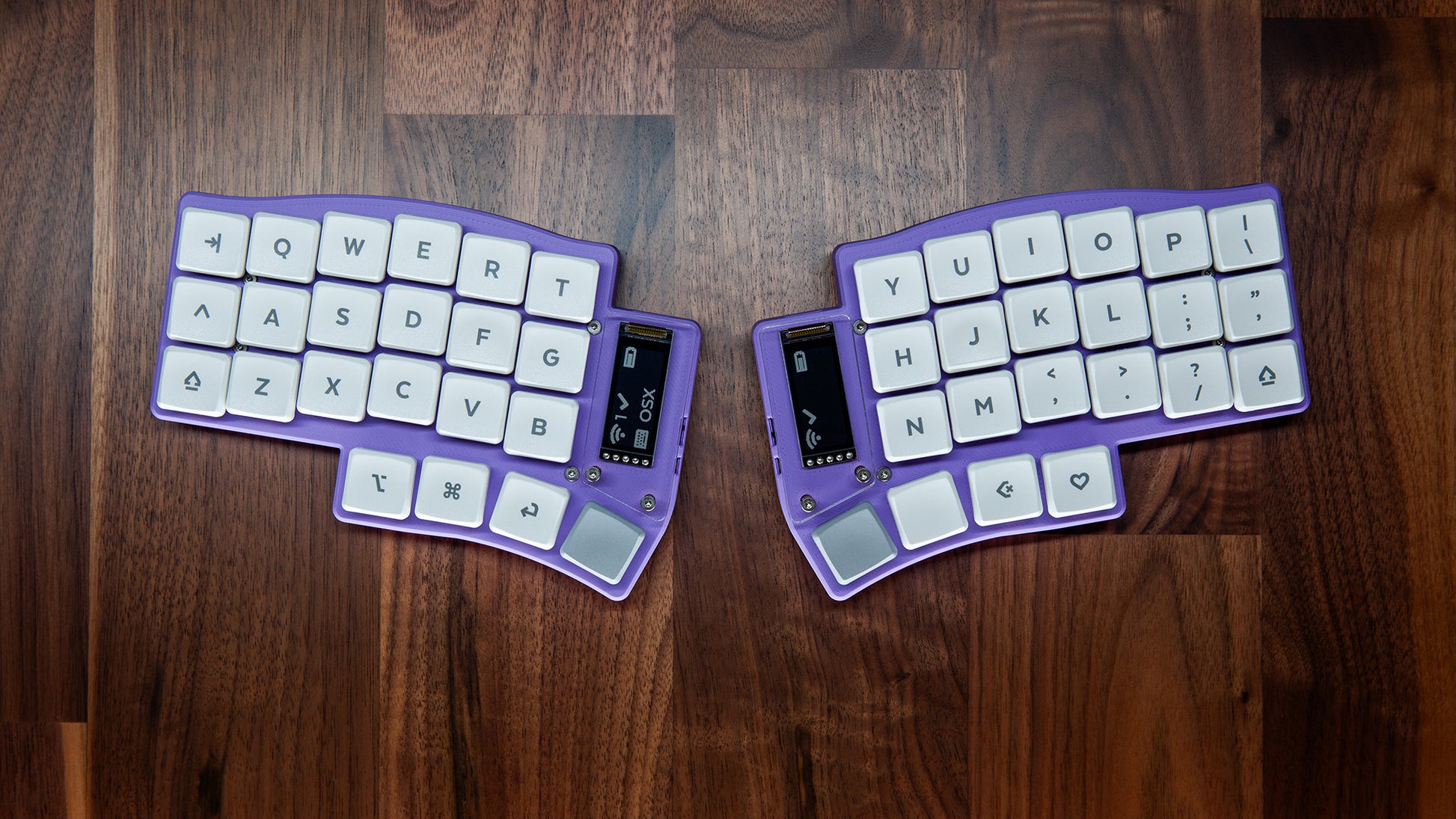

Pepito v1.13 | Wireless Low Profile

Reserved for each kit: nice!views.

If you are interested in purchasing Pepito with nice!view displays, please contact us. We can help create your order and add nice!views based on your preference.

• Pepito v1.13 | Wireless Low Profile (Left and Right PCBs)
• 2x Seeed Studio XIAO BLE Microcontrollers
• 45x SMD Diodes
• 45x Kailh Low Profile Hot Swaps
• 2x Alps Reset Switches
• 2x Alps Alpine Micro Switches
• 4x Mill-Max 7-Position Sockets
• 2x Mill-Max 5-Position Sockets
• 40x Mill-Max Pins
• 2x JST PH-2 Receptacles
• 12x M2 Stand-offs
• 24x M2 Torx Screws
• 1 Pair of Clear Acrylic Covers
• 12x 3M Bump-ons
• 3D Printed Case (Black, Matte Black, White, Grey, Red, Orange, or Lavender)

Required Components Based on Configuration Preferences

Pepito v1.13 is wireless only, the following components are required; however, not included in this kit, and component costs are extra.

Switches and Keycaps:

• 44x Kailh Choc Switches (Robin, White, Brown, Red, Pro Red, or Pro Pink)
• Keycap Set (MBK Blanks, Glow, Glow R2, or Legend‡ 40s)

LiPo Batteries:

• 2x Rechargeable LiPo Batteries JST PH-2 (110mAh, or 700mAh)

Optional Displays:

• 2x nice!view Displays

Preparing Your Order

If you place an order, we will proactively contact you to obtain your case colour preferences, and verify the different options you may wish to configure your Pepito with.

3D Printing, Quality Assurance, and Packaging

Please allow 3 to 4 business days to prepare your order.  Albeit, the majority of the time is 3D printing and post processing; it takes a few hours to ensure accuracy, and component quality assurance during the packaging process.

International Orders with Batteries

International orders that may include batteries (i.e., wireless builds), will be required to be shipped via DHL—extra charges may apply for shipping, and customs.

Building Considerations

Pepito has many small components, and it would benefit having the proper tools.  If you wish to build Pepito for yourself, please consider the following items:

• Soldering Iron capable of variable temperatures, 280℃ – 375℃
• 0.2mm, or 0.3mm Rosin Core Solder
• Soldering Tips (fine and small)
• Flux (optional)
• T5 Torx Screwdriver
• Kapton Tape 1/4" or 1/2" wide
• 99% IPA + Mini Ramekin
• Cotton Swabs
• Multimeter

A build guide is currently in development; yet, you may find helpful information within Leeloo and Leeloo-Micro Build Guide.

Budget about 8 to 10 hours to build Pepito from start to finish.

Pepito ZMK firmware: Pepito v1.13 | ZMK Firmware.

Build Service

If you would like Clickety Split to build your custom Pepito, we can assist you.  Our build service includes:

• Soldering of all components.
• Initial build of your base keymap (Main, Lower, Raise, Adjust), and an archive of firmware files when complete.
• Quality assurance and testing.
• Photos and updates during the entire build process.

Support

If you have any questions with the ordering process, build process, or if you'd like to talk about the various options you may have before building, please contact us.
